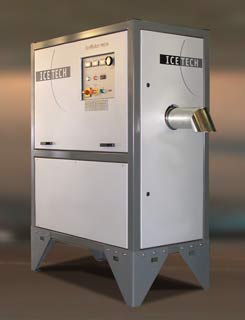

DRY ICE PELLETIZER - IceMaker PR150 - Part no. 90017
|
 |
| |
| The IceTech IceMaker PR150 presents a revolutionary alternative
to existing dry ice making machines. The IceMaker PR150 provides
non-stop supply of high-density dry ice pellets from a source
of low temperature liquid carbon dioxide. From a storage tank,
a regulated supply of liquid CO2 is expanded to low pressure
and forms the dry ice snow which is then pressed through a
multiport extruder die by a single acting horizontal reciprocating
piston.
The IceMaker PR150 is placed in a closed steel cabinet,
which has been muffled to limit the noise level and includes
the latest technical advances in heat exchangers as it enables
the user to limit startup time and improve the quality of
the pellets compared to existing products on the market.
|
| Technical data |
|
| Rated Output:
|
Up to 150 kg of high quality dry ice pellets
per hour. |
| Pellet Size:
|
Cylindrical 3 mm diameter, varying to
50 mm in length |
| Infeed Liquid CO2 Pressure:
|
13-22 bar or 10-13 bar. |
| Liquid CO2 Dryness:
|
The water content must not exceed 66 ppm
or equivalent to a dewpoint of minus -45° C. NOTE:
Liquid supply must be completely free from oil. |
| Liquid CO2 Supply Pipe:
|
19 mm I.D. minimum, very well insulated,
with minimum bends and fittings.
NOTE: If over 3 m in length, use 25 mm I.D. minimum. |
| Recommended Driving Motor:
|
4 kW, 3 phases, 400 V. |
| Machine Dimensions: |
Width: 700 mm
Height: 1300 mm
Length: 1600 mm |
|
|
|
|
|
|
